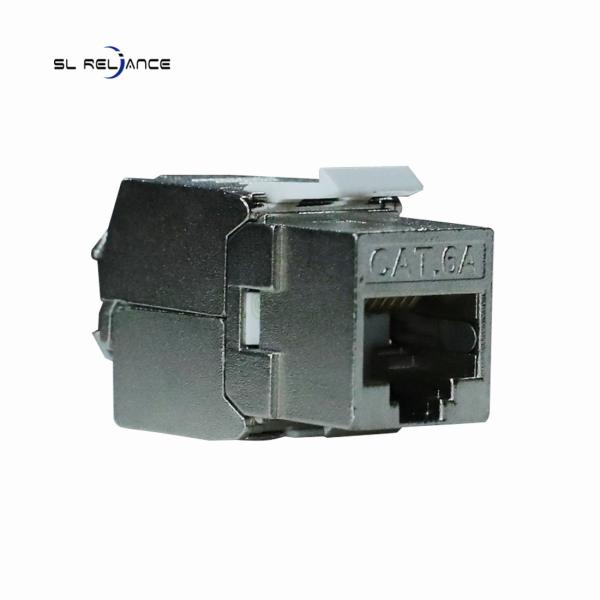

Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack

Product Categories

ADSS Fiber Optic Cable [15]
Direct Buried Fiber Optic Cable [22]
FTTH Drop Fiber Optic Cable [17]
Fiber Optic Termination Box [10]
Fiber Optic Splice Closure [9]
Fiber Optic Patch Cord [18]
Fiber PLC Splitter [24]
MPO MTP Patch Cord [17]
Patch Panel Cabinet [20]
Gigabit Ethernet Cables [16]
Copper Patch Cords [13]
Fiber Optic Fast Connector [10]
RJ45 Keystone Jack [11]
Optical Network Unit ONU [10]

SL RELIANCE LTD

Contact Now

Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack

Brand Name : SL

Model Number : SL-JACK-2070C6A

Certification : CE ROHS

Place of Origin : GUANGDONG CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/A

Supply Ability : 100K PCS per WEEK

Delivery Time : 3-5 Days after payment

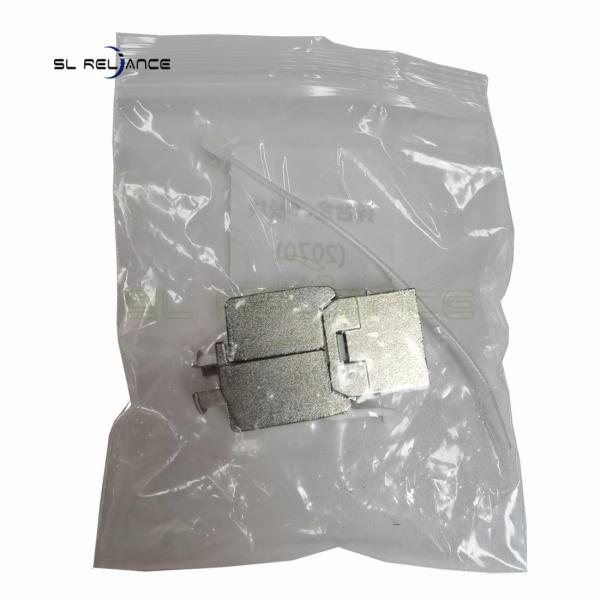

Packaging Details : 1000PCS/CARTON,

Product name : Cat6A RJ45 Keystone Jack 180 degree FTP modular jack

Model : 2070C6A

Shielded : FTP Shielded

Carton : 61*41*22CM

Qty of Carton : 1000PCS/carton

Weight : 27KGS/Carton

Application : Network Cabling Systems

Category : 6A

Type : Tooless

Contact Now

180 Degree Cat6A FTP Zinc Alloy Tooless Type Keystone Jack RJ45 8P8C Modular Jack

Features:

~ SL Cat6a Keystone Jack Suitable for 10 Gigabit (10/100/1000/10000 Mb/s)

~ Compatible with 23 to 26 AWG solid or stranded copper conductors.
~ Supports PoE++ 802.3bt Type 4, up to 90W.
~ Press-Fit Technology makes SL product more reliable and increases transmission performance.
~ Tested up to 500 MHz.

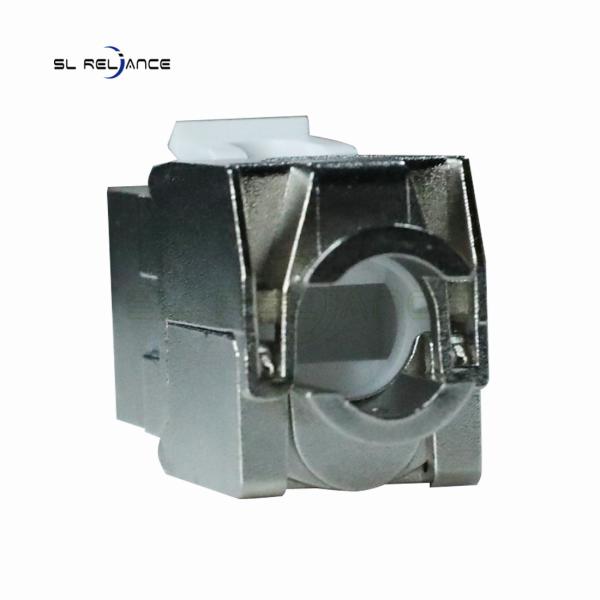

~ Self-adjusting spring in the strain relief neck assures the cable shield is in contact with the metal housing.
~ Easy to Use
~ Self-terminating means no more punch down tools required.

Contact Mating Area Plating Material = Gold plating option (3U",6U",15U",30U",50U") over Nickel

Model Number	SL2070C6a
Name	INLINE COUPLER
TYPE	FTP shieled
Category	6a
Spring	Phosphor Bronze & Gold-painted
Wiring mode:	T568A&T568B
IDC Terminal	22-26 AWG Cable
IDC Pin:	Phosphor Bronze & Tinned
RJ45 Insert pin	8P8C 8" Gold Plated
Housing Material	ZINC-ALLOY,PC
Color	Silver
Test	Channel test and Flukee test

Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack

Electrical
Voltage Rating :	AC 125V
Current Rating :	1.5 AMPS
Insulation Resistance:	500MΩ Min
Withstand Voltage:	DC 1000V RMS 50-60Hz Min
Contact Resistange:	20MΩ Max
Mechanical
Insertion Force:	2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength:	70N between jack and plaug;60N between wire and IDC
Durability:	Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire:	AWG 24-26
Material
Housing:	Zinc-Alloy
IDC Hosing:	PC(UL94V-0)
Spring Wire:	T=0.35mm phosphor bronze alloy selective gold 0.45 dia phosphor bronze gold plating over nickel
IDC Contact :	Phosphor bronze;Nickel plating
Shielding:	T=0.25mm copper alloy with tin plated gold
Plating :	3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature:	-10°c TO 60°c
Humidity:	10-90%

Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack

Product Tags:

Cat6a Shielded Keystone Jack

Cat6a 8P8C Modular Jack

Cat6a Shielded Keystone Jack RJ45

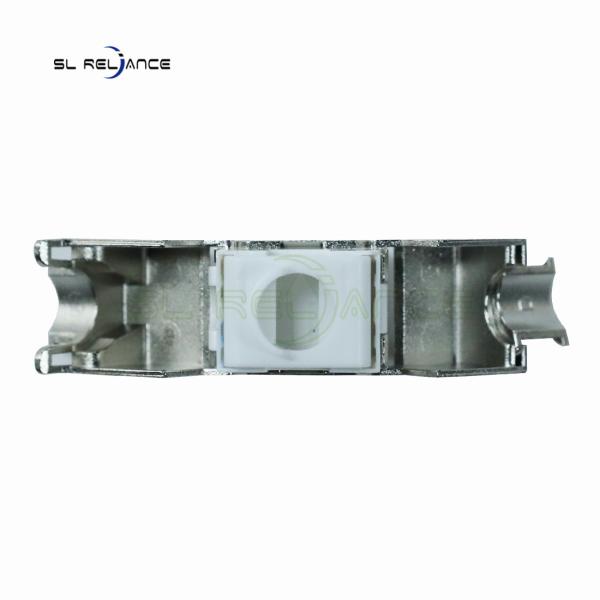

Zinc Alloy Cat6a Shielded Keystone Jack RJ45 8P8C Modular Jack Images
